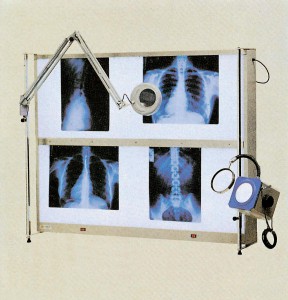

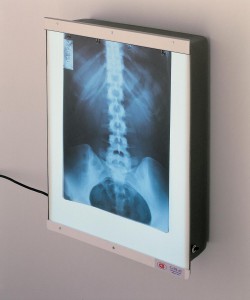

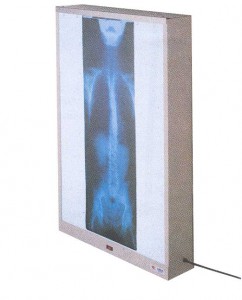

Data X-RAY FILM VIEWERS STANDARD SERIES :
- Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment
- Stove enamelled steel structure thickness 0,8 mm
- Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment
- Smelted opaline acrylic screen thickness 3 mm inserted into the structure
- Neon tubes of 6.000°Kelvin (other type of tubes av ailable on request)
- Upper and/or central pressing rolls film holding system
- Bipolar switches on the front (on request is possible apply other type of switches and their position)
- External fuses lagging type 5×20 (positioned on the bottom right side)
- Feeding cable complete with plug and earth “Italian” type cm. 180 long (other type of plugs on
request) - Arranged for wall mounting installation through expansion dowels
- Integrable with other optional devices like: lateral support for spot viewers and/or magnifying lens,
trolley on wheels, light intensity regulator. - X-ray film viewer conforms to Directive 93/42/CEE – Medical Devices – Class 1
Moreover meets the Directive 73/23 CEE (Low tension) 89/336 CEE (Electromagnetic compatibility).
Construction conforms to Norms EN 60601 -1,2 / Din 6856 -1,2 - Feeding 230V / 50Hz + earth
- Maintenance: recurrent cleaning (each 6 months) of the whole screen
