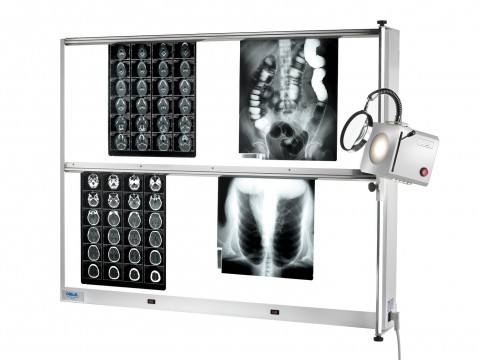

X-ray film viewer high frequency series
- Stove enamelled steel structure thickness 0,8 mm;
- Fire epoxy painting colour peel RAL 9010;
- Smelted opaline acrylic screen thickness 3 mm inserted into the structure;
- Neon tubes of 6.000°Kelvin (other type of tubes available on request);
- Speed switching by electronic reactors of 40.000 Hz which avoid lamps flutter;
- Special electronic light regulator which allow a very good light regulation from 100% to 10%;
- Upper and/or central pressing rolls film holding system;
- Speed bipolar switches on the front (on request is possible to apply other type and/or their position);
- External fuses lagging type 5×20 (positioned on the bottom right side);
- Feeding cable complete with plug and earth “Italian” type 180 long (on request it is possible to supply other type of cables) positioned on the bottom right side;
- Predisposed for wall installation through expansion dowels;
- Integrable with other optional devices like: lateral support for spot viewers and/or magnifying lens, trolley on wheels;
- Thefilm vieweriscompliant with Directive 93/42/EEC-Medical Devices -Class 1
also complies with Directive 73/23 EEC (Low Voltage) Directive 89/336 EEC (Compatibility
Electromagnetic).
The construction complies with EN 60601 1.2 / DIN 6856 -1
- Can be installed in rooms as medical use (CEI 64-4)
- Feeding 230V / 50Hz + earth;
- Maintenance: recurrent cleaning (each 6 months) of the whole screen and tubes replacement each 5.000 hours of use;
