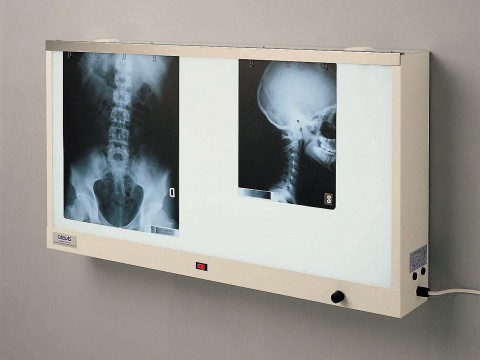

X-ray film viewer wall series standards Stove enamelled steel structure thickness 0,8 mm; Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment; Smelted opaline acrylic screen thickness 3 mm inserted into the structure; Neon tubes of 6.000°Kelvin (other type of tubes available on request); Upper and/or central pressing rolls film holding system; Bipolar switches

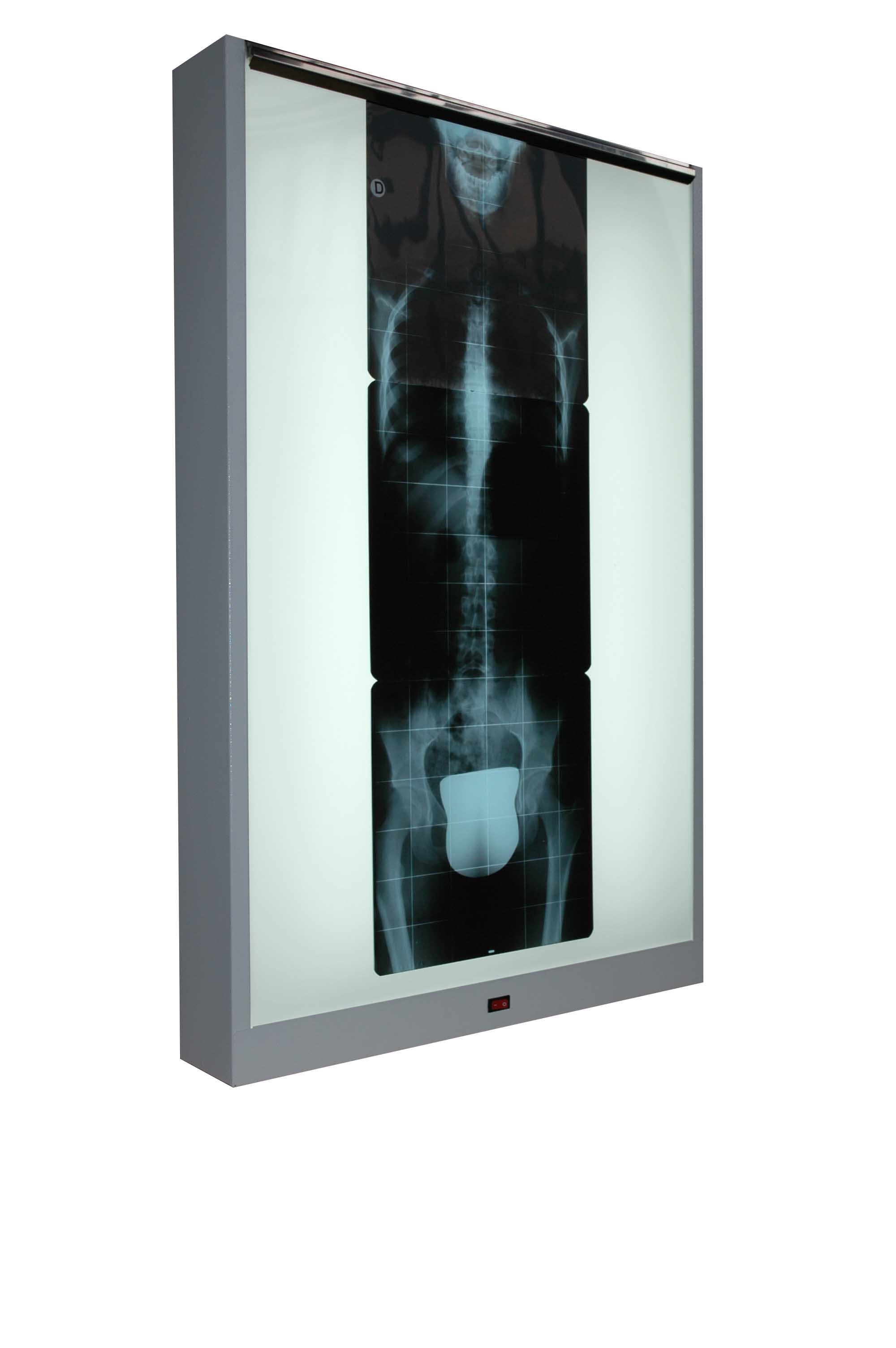

X-ray film viewer standard series horizontal Stove enamelled steel structure thickness 0,8 mm; Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment; Smelted opaline acrylic screen thickness 3 mm inserted into the structure; Neon tubes of 6.000°Kelvin (other type of tubes available on request); Upper and/or central pressing rolls film holding system; Bipolar switches

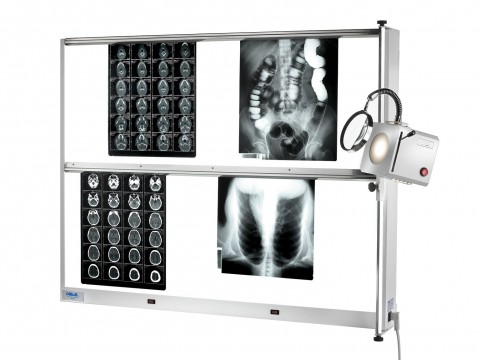

X-ray film viewer standard series Stove enamelled steel structure thickness 0,8 mm; Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment; Smelted opaline acrylic screen thickness 3 mm inserted into the structure; Neon tubes of 6.000°Kelvin (other type of tubes available on request); Upper and/or central pressing rolls film holding system; Bipolar switches

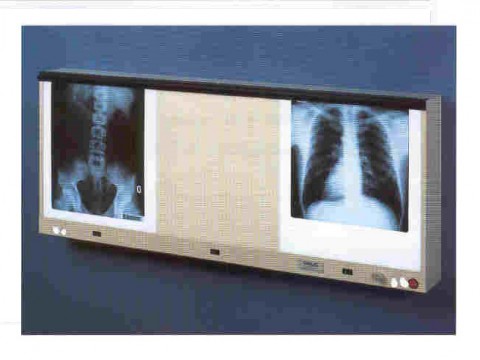

X-ray film viewer high frequency series Stove enamelled steel structure thickness 0,8 mm; Fire epoxy painting colour peel RAL 9010; Smelted opaline acrylic screen thickness 3 mm inserted into the structure; Neon tubes of 6.000°Kelvin (other type of tubes available on request); Speed switching by electronic reactors of 40.000 Hz which avoid lamps flutter; Special
X-ray film viewer high light intensity series Stove enamelled steel structure thickness 0,8 mm. Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment Smelted opaline acrylic screen thickness 3 mm inserted into the structure Neon tubes of 6.000°Kelvin (other type of tubes available on request) Speed bipolar switches on the front Upper and/or

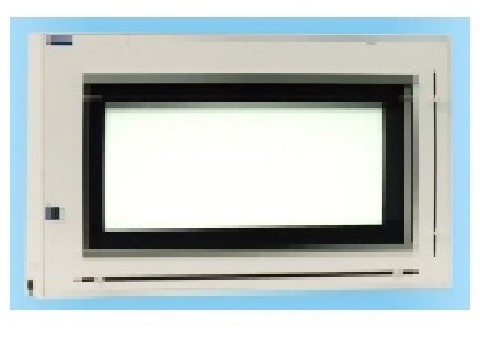

X-ray film viewers with shutters Stove enamelled steel structure, thickness 0,8 mm; Fire epoxy painting color peel RAL 9010; Smelted opaline plexiglass screen; Neon tubes of 6.000°Kelvin with high frequency reactors feeding; Upper and/or central film holder; Speed bipolar switches on the front comp0lete with dimmer which allows a very good light regulation from 100%

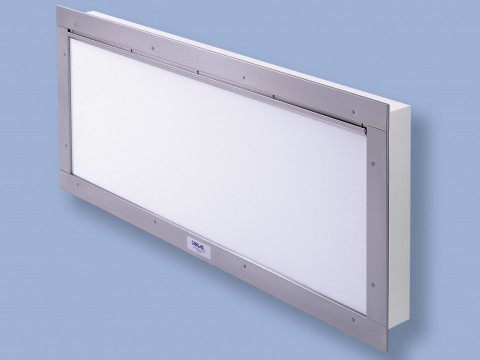

X-ray film viewer wall recessed series Homogeneous lighting by n°3 fluorescent tubes with colour temperature 6000° K. Pressing rolls film-holding system Stove enamelled steel structure Outside polished steel frame White monochromatic diffuser Equipped with terminal board for electrical connection. Predisposed for explosion-proof installation. Which this declaration refers, conforms to Directive 93/42/CEE – Medical Devices –

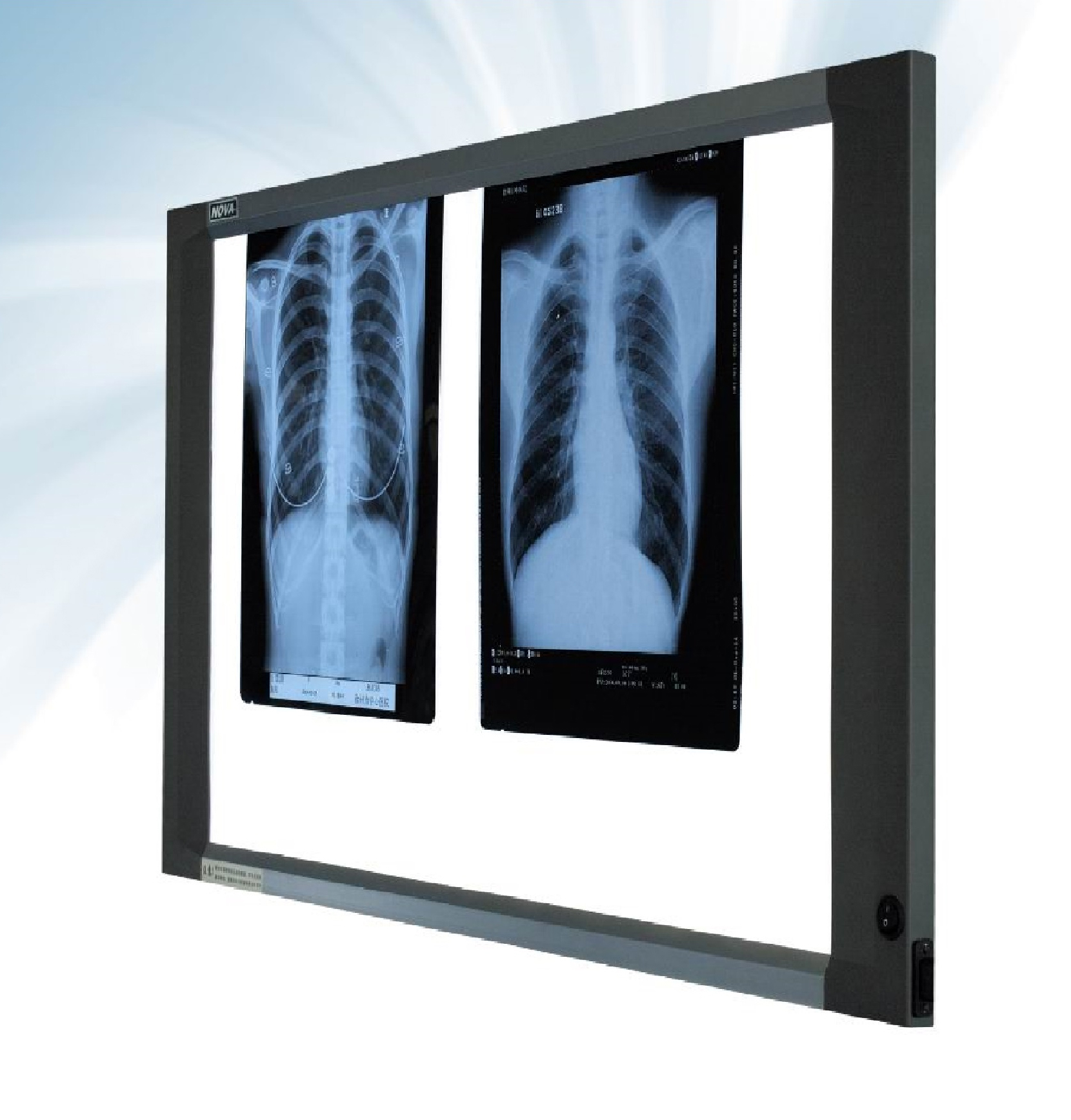

Slim x –ray film viewe (VEDI CODICE PRODOTTO E DATA SHEET)

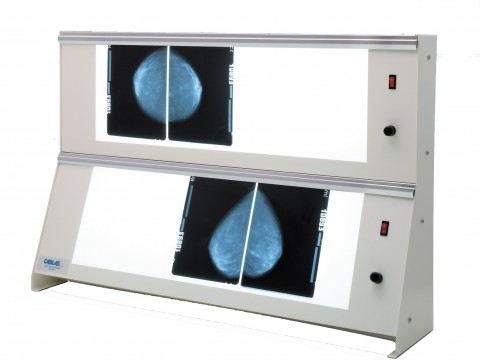

X-ray film viewer for mammography high frequency Stove enamelled steel structure 0,8 mm. Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment Neon tubes 6.000°K (other type of tubes available on request) Speed switching Light regulator which allows a very good light regulation from 100% al 10%. (HIGH FREQUENCY MODEL) Upper and/or central
X-ray film viewer for mammography high light intensity Stove enamelled steel structure 0,8 mm; Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment; Neon tubes 6.000°K ((other type of tubes available on request); Speed switching; Light regulator which allows a very good light regulation from 100% al 10%; Upper and/or central pressing rolls

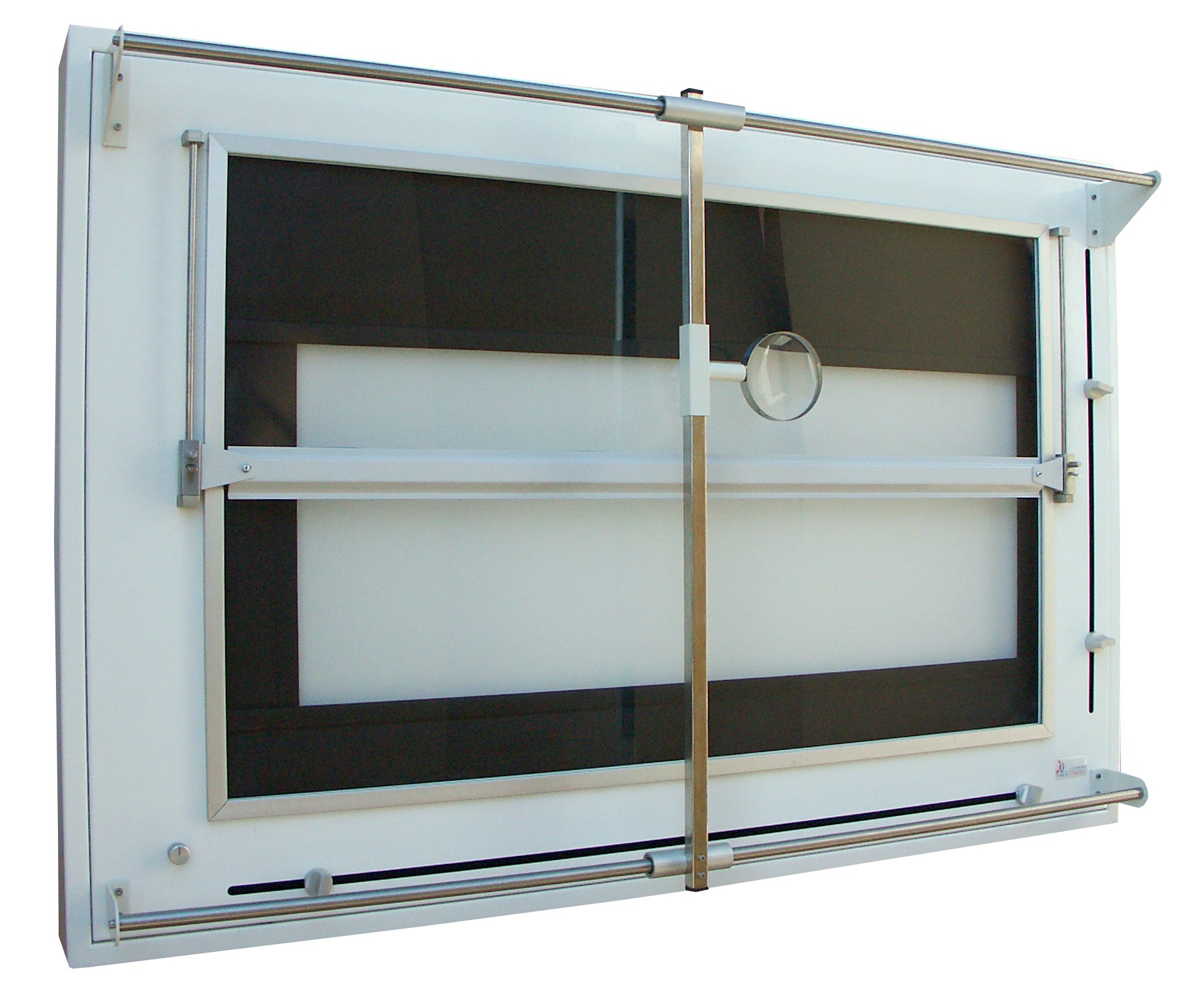

X-ray film viewer for mammography with blinds High luminous flux density > 6500 cd/m2 (greater than in conventional viewers); Infinitely variable adjustment of luminance within the range from 10 to 100%of maximum luminance; Collimation combined with luminous density control dramatically improves identification of even the tiniest details (microcalcifications), a feature of decisive diagnostic relevance in mammography; Integrated

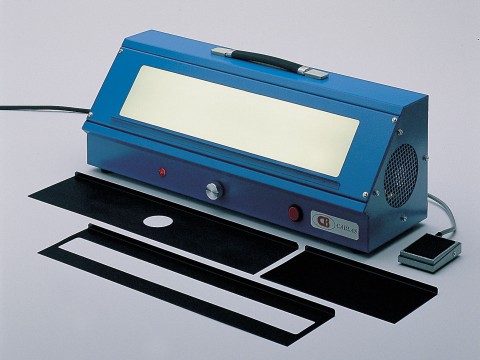

X – ray film viewer for ind. radiology. Structure in steel sheet painted with fire, lighting by halogen lamps 750 and 1000 w. Dual cooling fan. Tinted windows spaced. Diffuser monochrome white. Independent command: Switch for power supply and ventilation; Pedal to switch on lights and intensity adjustment.

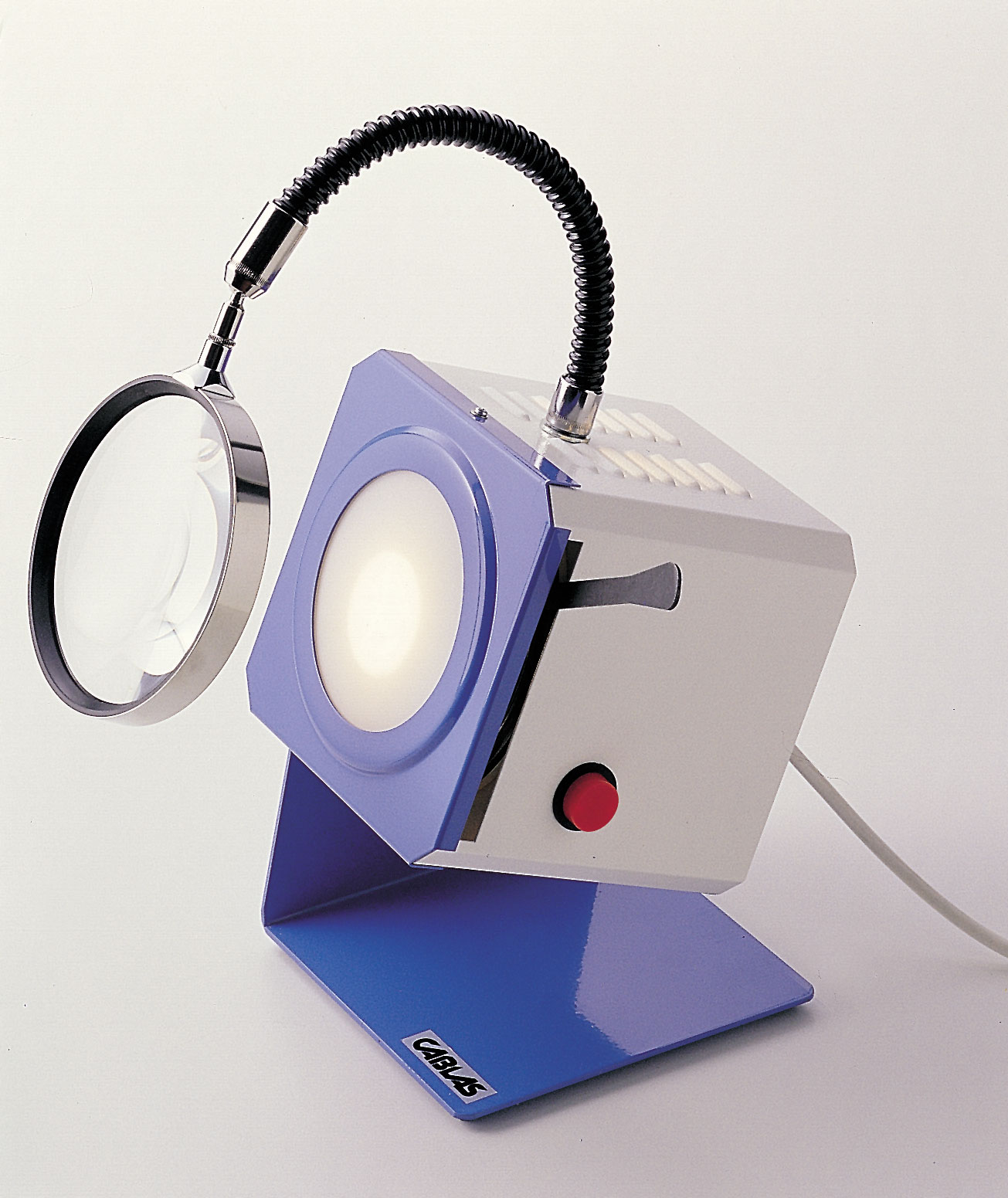

Orientable spot viewer: Suitable for a reading of x-rays overlapped. Structure in painted steel sheet in focus. Alogen high intensity light lamp 300 W,long life. Suitable for exposed films reading.
Data X-RAY FILM VIEWERS STANDARD SERIES : Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment Stove enamelled steel structure thickness 0,8 mm Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment Smelted opaline acrylic screen thickness 3 mm inserted into the structure Neon tubes of 6.000°Kelvin (other type of tubes

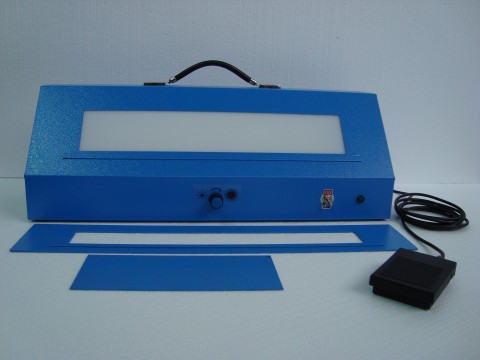

Sheet X – RAY VIEWER FILM FOR IND. RADIOLOGY LED TYPE: The film viewer radiology industrial LED 10 x 2 4 cod.M-CB-20 high luminance is designed, manufactured and tested in accordance with relevant regulations. And ‘dedicated to the analysis of industrial radiography high density (about 3.9 D) and should be used by individuals who are
